ASTM A249 A269 Stainless Steel Tube For Liquid Cooling System

Stainless steel liquid cooling tubes are designed for efficient heat transfer in applications requiring corrosion resistance, durability, and thermal performance. Common uses include HVAC systems, industrial chillers, Supercomputer, data center cooling, and automotive cooling.

  • Standard:
  • Grades:
  • Outer Diameter:
  • Wall Thickness:
  • Length:
  • Surface Finishes:
  • ASTM A249/ASME SA249, ASTM A269 (Welded), EN10217-7, JIS G3463
  • TP304/304L, TP316/316L, TP309S, TP310S, TP321, TP321H, TP347, TP347H, Duplex 2205 / S31803, etc.
  • 1/4"-8" , 6.35-203.2mm
  • 0.02"-0.2" , 0.5-5mm
  • Up to 24m / 80feet (custom lengths available)
  • Annealed & Pickled, Bright Annealed (BA), Electropolished (EP)

For more technical requirements and dimension specifications, please contact us to obtain support from our Engineering Department.

sales

Isabella

24/7 Support

quote@fsyaolong.com

Email Us

+86 18933011151

Phone & WhatsApp

Requeat A Quote

Order Display

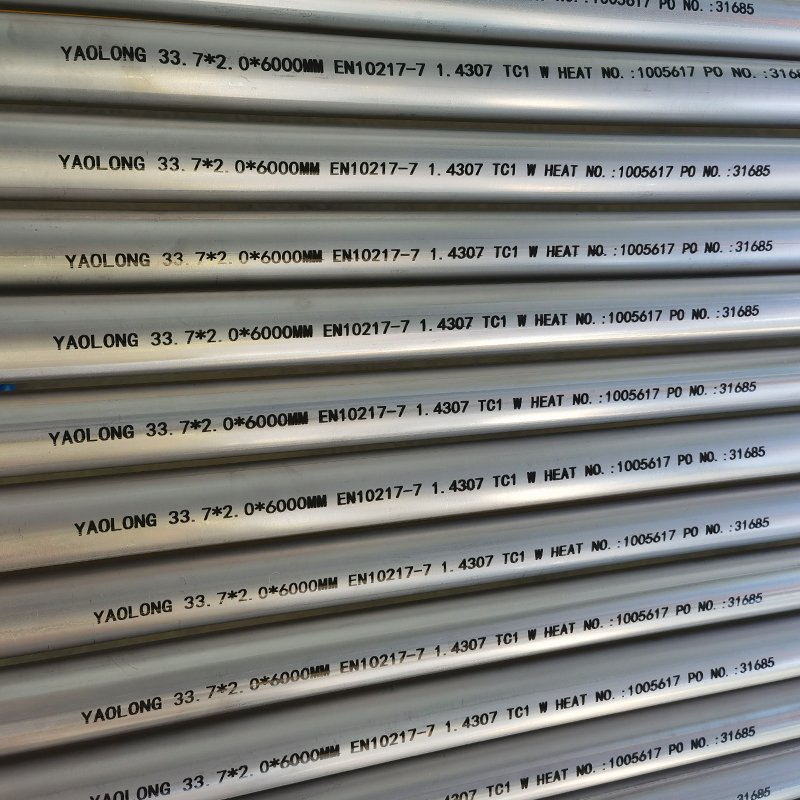

EN10217-7 2
Stainless steel heat exchanger tube
heat exchanger tube
heat exchanger tube
packing 2
packing 1
Size ODWall Thickness Tolerance of ODTolerance of LengthTolerance of WT
inch(mm)Gaugeinch(mm)inch(mm)inch(mm)
1/4"(6.35)180.049"(1.25)/0.039"(1.0)+/-0.005(0.13)+1/8"(3.18)-0+/-10.0%
3/8"(9.53)180.049"(1.25)/0.039"(1.0)+/-0.005(0.13)+1/8"(3.18)-0+/-10.0%
1/2"(12.7)16/180.065"(1.65)/0.049"(1.25)+/-0.005(0.13)+1/8"(3.18)-0+/-10.0%
3/4" (19.1)16/180.065" (1.65)/0.049"(1.25)+/-0.005(0.13)+1/8"(3.18)-0+/-10.0%
1" (25.4)16/180.065" (1.65)/0.049"(1.25)+/-0.005(0.13)+1/8"(3.18)- 0+/-10.0%
1-1/2"(38.1)16/180.065" (1.65)/0.049"(1.25)+/-0.008"(0.20)+1/8"(3.18)-0+/-10.0%
2"(50.8)16/180.065" (1.65)/0.049"(1.25)+/-0.008"(0.20)+1/8" (3.18)-0+/-10.0%
2-1/2"(63.5)160.065"(1.65)+/-0.010"(0.25)+1/8"(3.18)-0+/-10.0%
3"(76.2)160.065" (1.65)+/-0.010"(0.25)+1/8"(3.18)-0+/-10.0%
4" (101.6)140.083" (2.11)+/-0.015"(0.38)+1/8" (3.18)-0+/-10.0%
6" (152.4)140.083" (2.11)+/-0.030"(0.76)+1"(25.4)-0+/-10.0%
8" (203.2)120.109"(2.77)+0.061"(1.55)
-0.031"(0.79)		+1"(25.4)-0+/-10.0%
GradeC(max)Si(max)P(max)S(max)CrNiMoTi
TP304/1.43010.0810.0450.0318.0-20.08.0-10.5
TP304L/1.43070.03510.0450.0318.0-20.08.0-12.0
TP304H/1.49480.04-0.1010.0450.0318.0-20.08.0-12.0
TP316/1.44010.0810.0450.0316.0-18.011.0-14.02.0-3.0
TP316L/1.44040.03510.0450.0316.0-18.010.0-14.02.0-3.0
TP316Ti/1.45710.0810.0450.0316.0-18.010.0-14.02.0-3.00.7>5x(C+N)
TP321/1.45410.0810.0450.0317.0-19.09.0-12.00.7>5x(C+N)
TP317L/1.44490.0810.0450.0318.0-20.011.0-14.03.0-4.0
TP347H/1.49120.04-0.1010.0450.0317.0-19.09.0-13.0
TP309S/1.48330.0810.0450.0322.0-24.012.0-15.00.75
TP310S/1.48450.0810.0450.0324.0-26.019.0-22.00.75
