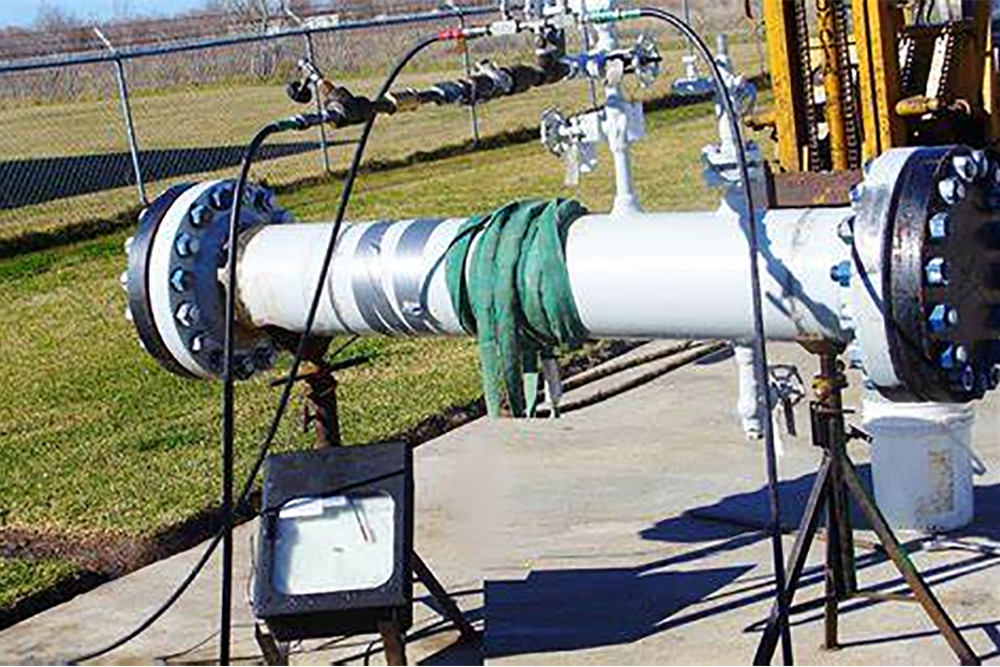

A hydrostatic test is a pressure test used to verify the strength and leak-tightness of pressure vessels, pipelines, boilers, and other pressurized systems by filling them with a liquid (usually water) and pressurizing them beyond their normal operating limits.
Key Steps in Hydrostatic Testing:
- Preparation:
– Drain and clean the system to remove debris.
– Isolate the test section using valves or blind flanges.
– Install pressure gauges and relief valves for safety.
- Filling:
– Fill the system completely with water (or another incompressible fluid).
– Bleed out all air pockets to ensure accurate pressure readings.
- Pressurization:
– Gradually increase pressure to 1.5 times the design working pressure (or as per applicable standards like ASME, API, or ISO).
– Hold pressure for a specified duration (typically 10–30 minutes).
- Inspection:
– Check for leaks, bulges, or deformations.
– Monitor pressure drop (a significant drop indicates a leak).
- Depressurization & Drainage:
– Slowly release pressure to avoid water hammer.
– Drain and dry the system to prevent corrosion.
Advantages of Hydrostatic Testing:
Safer than pneumatic testing (water is incompressible, reducing explosion risk).
Detects both leaks and structural weaknesses.
Required by many safety regulations (e.g., ASME Boiler & Pressure Vessel Code).
Disadvantages:
Requires water disposal (may need treatment if contaminated).
Not suitable for systems that cannot tolerate water (requires drying afterward).
More time-consuming than air tests.
Safety Considerations:
– Never exceed the maximum allowable test pressure.
– Use pressure relief valves to prevent over-pressurization.
– Ensure proper venting of air pockets to avoid false readings.
– Follow OSHA/ASME/API standards for testing procedures.
When is Hydrostatic Testing Required?
– New installations (before commissioning).
– After repairs/modifications.
– Periodic safety inspections (e.g., gas cylinders, pipelines).
