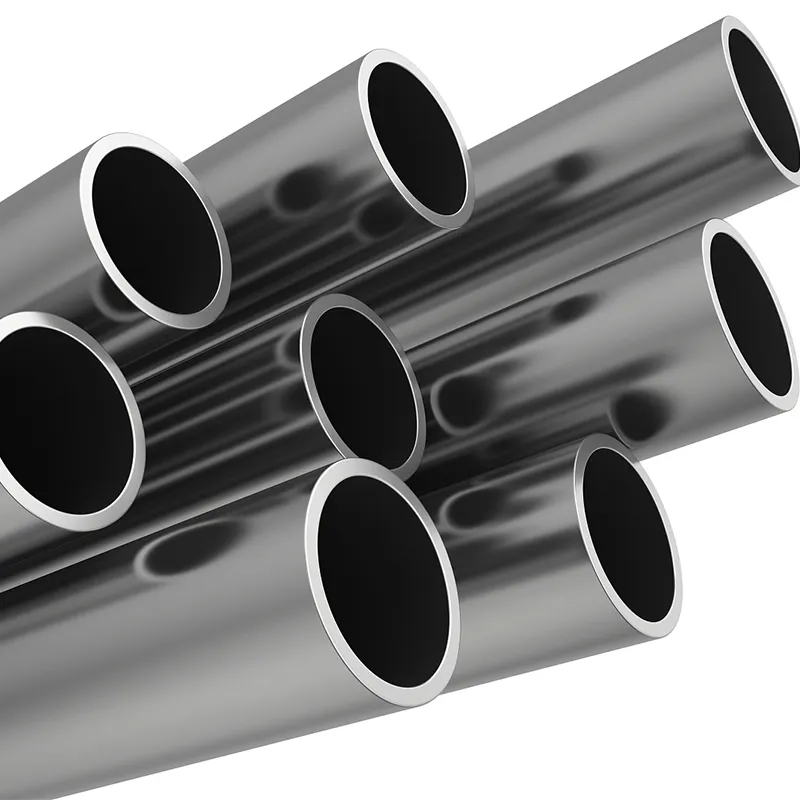

TP309/309S/309H, 1.4833
- International Standard :
-
Outer Diameter:
- Wall Thickness :
- Tube Type :
- Surface :
- Mill Test Certificate(MTC) :
- Certificate :
- Test Content :
- ASTM A249/A269/A270/A312/A358/A778, EN 10357, DIN10217-7, DIN 11850, JIS G3463/G3459, ISO 2037, AS 1528.1 ……
- DN6 - DN20001/8″ – 80″ , 10.3mm - 2032mm
- 1mm - 60mm SCH 5S - SCH XXSÂ
- Seamless , Welded(PLASMA+TIG)
- Polishing, Annealing, Pickling, Bright
- EN10204 3.1
- ISO 9001:2015, PED 2014/68/EU, AD 2000-WO
- Flange & Flaring Test,Reverse Flattening Test, Roughness Test, Hydrostatic/Pneumatic Test, Eddy Current Test (NDT), Surface Finish Verification, Dimensional Inspection, Material Certification
309, 309S, and 309H stainless steel pipe grades are considered for appropriate elevated-temperature and oxidation-resistant service. Their carbon limits and product requirements differ, so grade selection should follow the operating temperature, atmosphere, fabrication method, and applicable material standard.
For quotation, specify the exact grade, standard, manufacturing route, dimensions, length, heat treatment, testing, quantity, and documentation. Compare 310/310S/310H, review all material grades, or send your requirements.
ANSI/ASME B36.19 DIMENSION
| Nominal Size | OD | Wall Thickness, SCHEDULE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS | DN | mm | 5S | 10S | 10 | 20 | 30 | 40S | STD | 40 | 80S | XS | 80 | 100 | 120 | 140 | 160 | XXS | |
| 1∕8" | 6 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||||||
| 1∕4" | 8 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||||||
| 3∕8" | 10 | 17.2 | 1.65 | 2.31 | 2.31 | 231 | 3.2 | 3.2 | 3.2 | ||||||||||
| 1∕2" | 15 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||||||
| 3∕4" | 20 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||||||
| 1" | 25 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||||||
| 1-1∕4" | 32 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3,56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||||||
| 1-1∕2" | 40 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||||||
| 2" | 50 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||||||
| 2-1∕2" | 65 | 73 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||||||
| 3" | 80 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||||||
| 3-1∕2" | 90 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||||||
| 4" | 100 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.54 | 11.13 | 13.49 | 17.12 | ||||||
| 5" | 125 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9,53 | 9.53 | 12.7 | 15.88 | 19.05 | ||||||
| 6" | 150 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||||||
| 8" | 200 | 219.1 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 | ||
| 10" | 250 | 273.1 | 3.4 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 | ||
| 12" | 300 | 323.9 | 3.96 | 4.57 | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 | ||
| 14" | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | ||||
| 16" | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 12.7 | 21.44 | 26.19 | 30.95 | 36.53 | 40.49 | ||||
| 18" | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 12.7 | 23.83 | 29.36 | 34.93 | 39,67 | 45.24 | ||||
| 20" | 500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | ||||
| 22" | 550 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |||||
| 24" | 600 | 609.6 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | ||||
| 26" | 650 | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | |||||||||||||
| 28" | 700 | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||||||
| 30" | 750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||||
| 32" | 800 | 812.8 | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | 12.7 | ||||||||||
| 34" | 850 | 863.6 | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | 12.7 | ||||||||||
| 36" | 900 | 914.4 | 7.92 | 12.7 | 15.88 | 19.05 | 9.53 | 19.05 | 12.7 | ||||||||||
| 38" | 950 | 965.2 | - | 9.53 | 12.7 | ||||||||||||||
| 40" | 1000 | 1016 | - | 9.53 | 12.7 | ||||||||||||||
Chemical Composition %
| Â | C | Mn | P | S | Si | Cr | Ni | N |
| 309 | 0.20 | 2.00 | 0.045 | 0.030 | 1.0 | 22.0-24.0 | 12.0-15.0 | Â |
| 309S | 0.08 | 2.00 | 0.045 | 0.030 | 1.0 | 22.0-24.0 | 12.0-15.0 | Â |
| 1.4833 | 0.15 | 2.00 | 0.045 | 0.015 | 1.0 | 22.0-24.0 | 12.0-15.0 | 0.11 |
Mechanical Properties
| Â | Tensile strength (Mpa) | Proof Stress (0.2%Offset)/MPa | Elongation Longitudinal (%) | Elongation Transverse (%) |
| 309/309S,1.4833 | 515 | 205 | 35 | 25 |
