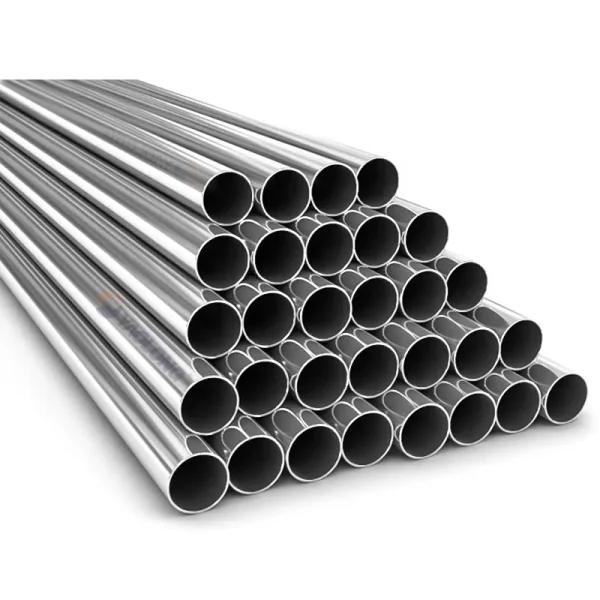

Stainless Steel Food Grade Tubing
- International Standard
- Material Grades
- Outer Diameter
- Wall Thickness
- Surface
- Tube Type
- Mill Test Certificate(MTC)
- Certificate
- ASTM A270, EN10357, DIN11850, AS1528.1, ISO2037, 3-A Standards
- AISI 304/304L/316/316L
- 1/4″ - 12"
6.35mm - 304.8mm - 0.035″ - 0.12″
0.89mm - 3.05mm - Grit 180, 240, 320
≤20Ra (0.5 μm) ID , ≤30Ra (0.8 μm) OD - Welded , Seamless
- EN10204 3.1
- ISO 9001:2015 , PED 2014/68/EU , AD 2000-WO
Stainless steel food grade tubing has emerged as the undisputed industry standard, offering an unmatched combination of hygiene, durability, and corrosion resistance. This specialized tubing is not merely a pipe; it is a engineered solution designed to safeguard product purity and ensure operational efficiency.

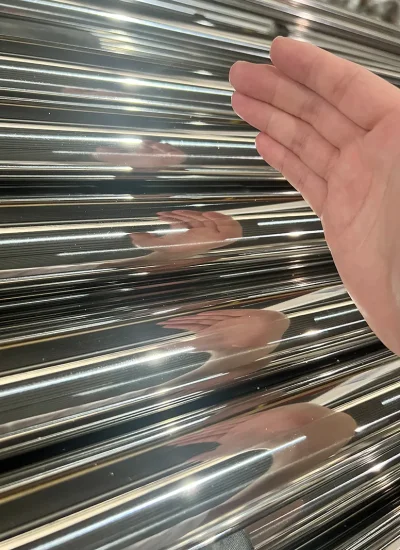

Dimension of ASTM A270 Food Grade Tubing
ASTM A270 is a standard specification for seamless and welded austenitic and ferritic/austenitic stainless steel food grade tubing. This standard covers stainless steel tubing used primarily in the dairy, food, pharmaceutical, and other high-purity industries where cleanliness and corrosion resistance are critical.
| DN | Tube OD | Wall Thickness | OD Tolerance | WT Tolerance | Length Tolerance | Weight |
|---|---|---|---|---|---|---|
| inch(mm) | inch(mm) | inch(mm) | inch(mm) | (kg/m) | ||
| 8 | 1/4" (6.35) | 0.035" (0.89) | +/-0.005" (0.13) | +/-10.0% | +1/8" (3.18) -0 | 0.124 |
| 15 | 1/2" (12.7) | 0.065" (1.65) / 0.049"(1.25) | +/-0.005" (0.13) | +/-10.0% | +1/8" (3.18) -0 | 0.454 |
| 20 | 3/4" (19.1) | 0.065" (1.65) / 0.049"(1.25) | +/-0.005" (0.13) | +/-10.0% | +1/8" (3.18) -0 | 0.717 |
| 25 | 1" (25.4) | 0.065" (1.65) / 0.049"(1.25) | +/-0.005" (0.13) | +/-10.0% | +1/8" (3.18) -0 | 0.976 |
| 40 | 1-1/2" (38.1) | 0.065" (1.65) / 0.049"(1.25) | +/-0.008" (0.20) | +/-10.0% | +1/8" (3.18) -0 | 1.50 |
| 50 | 2" (50.8) | 0.065" (1.65) / 0.049"(1.25) | +/-0.008" (0.20) | +/-10.0% | +1/8" (3.18) -0 | 2.02 |
| 65 | 2-1/2" (63.5) | 0.065" (1.65) | +/-0.010" (0.25) | +/-10.0% | +1/8" (3.18) -0 | 2.54 |
| 80 | 3" (76.2) | 0.065" (1.65) | +/-0.010" (0.25) | +/-10.0% | +1/8" (3.18) -0 | 3.06 |
| 100 | 4" (101.6) | 0.083" (2.11) | +/-0.015" (0.38) | +/-10.0% | +1/8" (3.18) -0 | 5.23 |
| 150 | 6" (152.4) | 0.109" (2.77) | +/-0.030" (0.76) | +/-10.0% | +1/8" (3.18) -0 | 10.32 |
| 200 | 8" (203.2) | 0.109" (2.77) | +/-0.030" (0.76) | +/-10.0% | +1/8" (3.18) -0 | 13.86 |
| 250 | 10"(254) | 0.120"(3.05) | +/-0.040" (1.016) | +/-10.0% | +1/8" (3.18) -0 | - |
| 300 | 12"(304.8) | 0.120"(3.05) | +/-0.040" (1.016) | +/-10.0% | +1/8" (3.18) -0 | - |
Dimension of DIN11850 / EN10357 Food Grade Tubing
DIN 11850 (German Standard) and EN 10357 (European Norm) specify austenitic stainless steel seamless and welded tubes for hygienic applications, particularly in the food, beverage, pharmaceutical, and chemical industries. These standards ensure high cleanliness, corrosion resistance, and smooth surfaces for sanitary processes.
The wall thickness is relatively thin, making it suitable for low-pressure or normal-temperature applications (such as low-pressure conveying in the food and pharmaceutical industries).
Typical applications: Non-corrosive media or low-pressure scenarios
| Nominal Diameter | Tube OD | Tolerances, OD | Wall Thickness | Telerances, WT | Telerances, Length | Weight |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | Kg/m | ||
| DN10 | 12 | ±0.12 | 1.0 | ±10% | ＋3.0 | 0.27 |
| DN15 | 18 | ±0.12 | 1.0 | ±10% | ＋3.0 | 0.42 |
| DN20 | 22 | ±0.12 | 1.0 | ±10% | ＋3.0 | 0.51 |
| DN25 | 28 | ±0.12 | 1.0 | ±10% | ＋3.0 | 0.66 |
| DN32 | 34 | ±0.12 | 1.0 | ±10% | ＋3.0 | 0.82 |
| DN40 | 40 | ±0.12 | 1.0 | ±10% | ＋3.0 | 0.97 |
| DN50 | 52 | ±0.2 | 1.0 | ±10% | ＋3.0 | 1.27 |
Medium wall thickness, combining strength and lightweight, suitable for medium pressure or general industrial applications.
Typical applications: Chemical industry, water treatment and other conventional working conditions.
| Nominal Diameter | Tube OD | Tolerances, OD | Wall Thickness | Tolerances, WT | Tolerances, Length | Length |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | (m) | ||
| DN10 | 13 | ±0.3 | 1.5 | ±10% | ＋3.00 | 0.43 |
| DN15 | 19 | ±0.3 | 1.5 | ±10% | ＋3.00 | 0.66 |
| DN20 | 23 | ±0.3 | 1.5 | ±10% | ＋3.00 | 0.81 |
| DN25 | 29 | ±0.3 | 1.5 | ±10% | ＋3.00 | 1.03 |
| DN32 | 35 | ±0.3 | 1.5 | ±10% | ＋3.00 | 1.26 |
| DN40 | 41 | ±0.3 | 1.5 | ±10% | ＋3.00 | 1.50 |
| DN50 | 53 | ±0.3 | 1.5 | ±10% | ＋3.00 | 1.944 |
| DN65 | 70 | ±0.3 | 2.0 | ±10% | ＋3.00 | 3.43 |
| DN80 | 85 | ±0.3 | 2.0 | ±10% | ＋3.00 | 4.16 |
| DN100 | 104 | ±0.3 | 2.0 | ±10% | ＋3.00 | 5.03 |
| DN125 | 129 | ±0.4 | 2.0 | ±10% | ＋10.00 | 6.36 |
| DN150 | 154 | ±0.4 | 2.0 | ±10% | ＋10.00 | 7.612 |
| DN200 | 204 | ±0.4 | 2.0 | ±10% | ＋10.00 | 10.116 |
| DN250 | 254 | ±0.4 | 2.0 | ±10% | ＋20.00 | 12.555 |
| DN300 | 304 | ±0.4 | 2.0 | ±10% | ＋20.00 | 15.045 |
The wall thickness is relatively thick, with a higher pressure-bearing capacity, making it suitable for high-pressure, high-temperature or highly corrosive media.
Typical applications: High-pressure steam, strong acids, strong alkalis and other harsh environments.
| Nominal Diameter | Tube OD | Tolerances, OD | Wall Thickness | Tolerances, WT | Tolerances, Length | Weight |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | Kg/m | ||
| 10 | 14 | ±0.3 | 2.0 | ±10% | +3.00 | 0.60 |
| 15 | 20 | ±0.3 | 2.0 | ±10% | +3.00 | 0.90 |
| 20 | 24 | ±0.3 | 2.0 | ±10% | +3.00 | 1.10 |
| 25 | 30 | ±0.3 | 2.0 | ±10% | +3.00 | 1.40 |
| 32 | 36 | ±0.3 | 2.0 | ±10% | +3.00 | 1.70 |
| 40 | 42 | ±0.3 | 2.0 | ±10% | +3.00 | 2.00 |
| 50 | 54 | ±0.3 | 2.0 | ±10% | +3.00 | 2.60 |

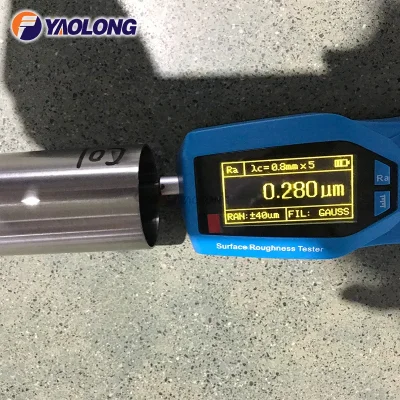

Finish Specifications
| Process | RA Micro Inch | RA Micron | ISO Designation |
|---|---|---|---|
| 150 grit | 30-35 | 0.75-0.875 | N6 |
| 150 grit + Electropolish | 12-20 | 0.3-.05 | |
| 180 grit | 20-25 | 0.5-.0625 | |
| 180 grit + Electropolish | 10-16 | 0.25-0.4 | |
| 240 grit | 15-20 | 0.375-0.5 | N5 |
| 240 grit + Electropolish | 8-12 | 0.2-0.3 | |
| 320 grit | 8-12 | 0.2-0.3 | N4 |
| 320 grit + Electropolish | 6-12 | 0.15-0.3 |
Chemical Composition of Stainless Steel Tube
| TUBE GRADES | UNS | Cr | Ni | Mo | C | P | S | Mn | Si |
| TP304 | S30400 | 18.0-20.0 | 8.0-11.0 | – | 0.08 | 0.045 | 0.03 | 2 | 1 |
| TP304L | S30403 | 18.0-20.0 | 8.0-13.0 | – | 0.035 | 0.045 | 0.03 | 2 | 1 |
| TP316 | S3160 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | 0.08 | 0.045 | 0.03 | 2 | 1 |
| TP316L | S31603 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.035 | 0.045 | 0.03 | 2 | 1 |
Tensile Properties of Stainless Steel Tube
| Material | Heat Treatment | Yield Strength Ksi (MPa), Min. | Tensile Strength Ksi (MPa), Min. | Temperure Min. ℉(℃) | Elongation %, Min |
| ASME SA270 304 | Solution | 30(205) | 75(515) | 1900 (1040) | 35 |
| ASME SA270 304L | Solution | 25(170) | 70(485) | 1900 (1040) | 35 |
| ASME SA270 316 | Solution | 30(205) | 75(515) | 1900(1040) | 35 |
| ASME SA270 316L | Solution | 25(170) | 70(485) | 1900(1040) | 35 |
Stainless Steel Food Grade Tubing Stainless Steel Food Grade Tubing Stainless Steel Food Grade Tubing Stainless Steel Food Grade Tubing Stainless Steel Food Grade Tubing Stainless Steel Food Grade Tubing Stainless Steel Food Grade Tubing Stainless Steel Food Grade Tubing
Sanitary Fittings in Process Piping (Food, Pharma, Dairy, etc.)
In industrial contexts, Sanitary Fittings (or Hygienic Fittings) refer to the specialized components used to connect pipes in systems where purity and cleanliness are critical. They are designed to prevent bacterial growth, allow for complete cleaning, and ensure product integrity.
Key Idea: These are the connectors and pipes themselves, used to build a system for processing sensitive products.
Key Characteristics:
Smooth, Polished Surfaces: Internally, they have a very smooth finish (often measured in Ra micro-inches) to prevent bacteria from clinging and to allow for easy cleaning.
No Crevices or Dead Spaces: They are designed to be flush with the pipe, creating a seamless flow path so that product or cleaning fluids don’t get trapped.
Easy to Disassemble and Clean (CIP/SIP): They are designed for frequent cleaning, often using methods like Clean-in-Place (CIP) or Sterilize-in-Place (SIP).
Material: Almost exclusively made from 304 or 316L Stainless Steel for its corrosion resistance and non-reactivity.
Common Types of Sanitary Fittings:
Clamp Fittings (Tri-Clamp): The most common type, using a three-piece clamp to seal a gasket between two ferrules.
Butt Weld Fittings: Permanently welded to create a perfectly smooth, crevice-free joint. Used where disassembly isn’t needed.
Bevel Seat Fittings: An older style, similar to clamp fittings but with a different gasket and connection system.
DIN/SMS Fittings: Standards more common in Europe, using a threaded nut to compress a gasket.
Common Components:
Elbows (90°, 45°)
Tees
Reducers
Caps
Ferrule (the stub end that gets connected)
