TP317/317L, 1.4449, 1.4438
- International Standard :
-
Outer Diameter:
- Wall Thickness :
- Tube Type :
- Surface :
- Mill Test Certificate(MTC) :
- Certificate :
- Test Content :
- ASTM A249/A269/A270/A312/A358/A778, EN 10357, DIN10217-7, DIN 11850, JIS G3463/G3459, ISO 2037, AS 1528.1 ……
- DN6 - DN20001/8″ – 80″ , 10.3mm - 2032mm
- 1mm - 60mm SCH 5S - SCH XXSÂ
- Seamless , Welded(PLASMA+TIG)
- Polishing, Annealing, Pickling, Bright
- EN10204 3.1
- ISO 9001:2015, PED 2014/68/EU, AD 2000-WO
- Flange & Flaring Test,Reverse Flattening Test, Roughness Test, Hydrostatic/Pneumatic Test, Eddy Current Test (NDT), Surface Finish Verification, Dimensional Inspection, Material Certification

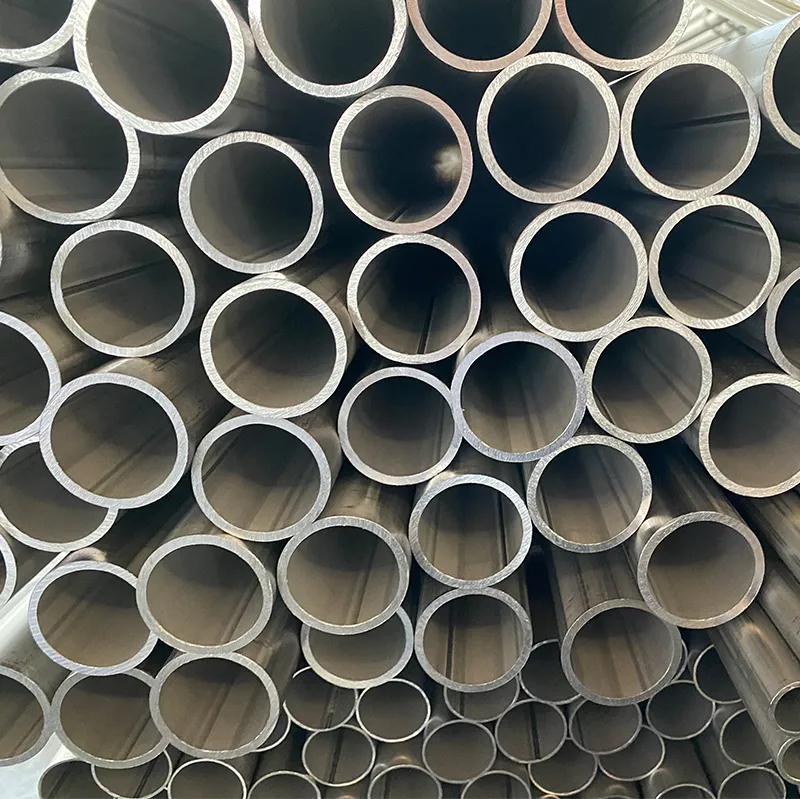

317 and 317L stainless steel pipe use molybdenum-bearing austenitic grades considered for suitable corrosive process environments. The low-carbon 317L grade may be preferred for welded fabrication, but final selection should follow the process medium, temperature, pressure, fabrication, and applicable standard.
For quotation, specify 317 or 317L, the product standard, manufacturing route, dimensions, length, heat treatment, testing, quantity, and documentation. Compare 316L, review all material grades, or send your technical requirements.
ANSI/ASME B36.19 DIMENSION
| Nominal Size | OD | Wall Thickness, SCHEDULE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS | DN | mm | 5S | 10S | 10 | 20 | 30 | 40S | STD | 40 | 80S | XS | 80 | 100 | 120 | 140 | 160 | XXS | |
| 1∕8" | 6 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||||||
| 1∕4" | 8 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||||||
| 3∕8" | 10 | 17.2 | 1.65 | 2.31 | 2.31 | 231 | 3.2 | 3.2 | 3.2 | ||||||||||
| 1∕2" | 15 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||||||
| 3∕4" | 20 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||||||
| 1" | 25 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||||||
| 1-1∕4" | 32 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3,56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||||||
| 1-1∕2" | 40 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||||||
| 2" | 50 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||||||
| 2-1∕2" | 65 | 73 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||||||
| 3" | 80 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||||||
| 3-1∕2" | 90 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||||||
| 4" | 100 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.54 | 11.13 | 13.49 | 17.12 | ||||||
| 5" | 125 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9,53 | 9.53 | 12.7 | 15.88 | 19.05 | ||||||
| 6" | 150 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||||||
| 8" | 200 | 219.1 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 | ||
| 10" | 250 | 273.1 | 3.4 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 | ||
| 12" | 300 | 323.9 | 3.96 | 4.57 | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 | ||
| 14" | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | ||||
| 16" | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 12.7 | 21.44 | 26.19 | 30.95 | 36.53 | 40.49 | ||||
| 18" | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 12.7 | 23.83 | 29.36 | 34.93 | 39,67 | 45.24 | ||||
| 20" | 500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | ||||
| 22" | 550 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |||||
| 24" | 600 | 609.6 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | ||||
| 26" | 650 | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | |||||||||||||
| 28" | 700 | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||||||
| 30" | 750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||||
| 32" | 800 | 812.8 | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | 12.7 | ||||||||||
| 34" | 850 | 863.6 | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | 12.7 | ||||||||||
| 36" | 900 | 914.4 | 7.92 | 12.7 | 15.88 | 19.05 | 9.53 | 19.05 | 12.7 | ||||||||||
| 38" | 950 | 965.2 | - | 9.53 | 12.7 | ||||||||||||||
| 40" | 1000 | 1016 | - | 9.53 | 12.7 | ||||||||||||||
Chemical Composition %
| Element | C | Cr | Ni | Mo | Mn | Si | N |
| 317 (S31700) | ≤0.08 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | ≤2.00 | ≤0.75 | – |
| 317L (S31703) | ≤0.03 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | ≤2.00 | ≤0.75 | – |
| EN 1.4438 | ≤0.07 | 17.5-19.5 | 13.0-15.0 | 3.0-3.5 | ≤2.00 | ≤0.75 | ≤0.11 |
| EN 1.4449 | ≤0.03 | 18.5-20.5 | 13.5-17.5 | 4.0-5.0 | ≤2.00 | ≤0.70 | ≤0.11 |
Mechanical Properties
| Â | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
| 317 | ≥515 | ≥205 | ≥40 | ≤217 |
| 317L | ≥485 | ≥170 | ≥40 | ≤217 |
| EN 1.4438 | ≥490 | ≥220 | ≥40 | ≤220 |
| EN 1.4449 | ≥490 | ≥220 | ≥40 | ≤220 |
