- International Standard
-
Material Grades
- Outer Diameter
-
Wall Thickness
- Tube Type
- Mill Test Certificate(MTC)
- Certificate
- ASTM A358, ASME SA358, ASME B36.19
- TP304/304L, TP316/316L, TP309/309S, TP310/310S, TP321/321H, TP347/347H, Duplex2205 / S31803
- DN6 - DN20001/8″ – 80″ 10.3mm - 2032mm
- 1mm - 60mm SCH 5S - SCH XXS
- Welded , Seamless
- EN10204 3.1
- ISO 9001:2015 , PED 2014/68/EU , AD 2000-WO

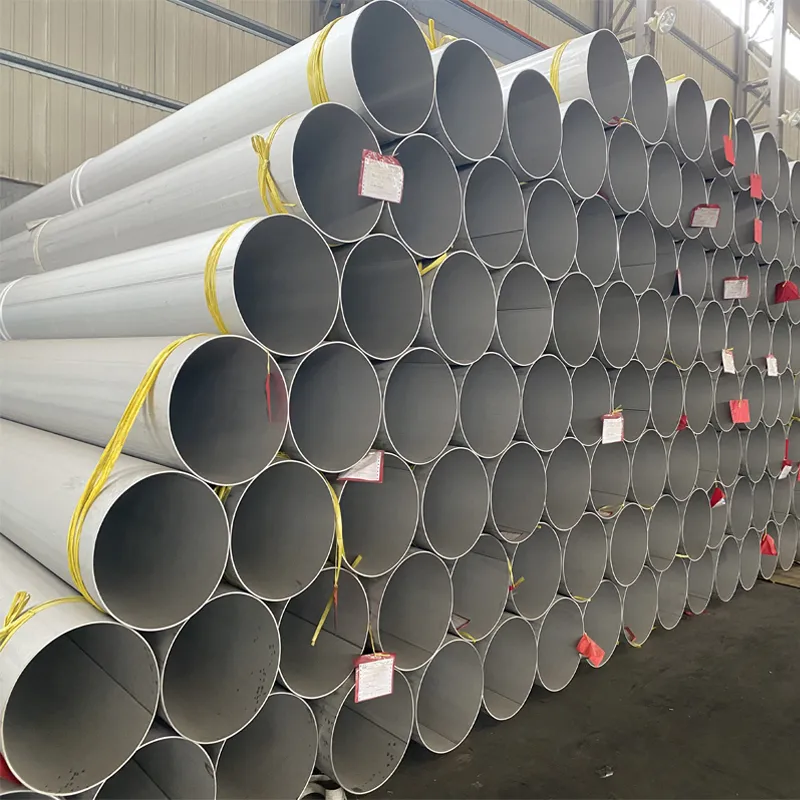

ASTM A358 stainless steel pipe covers electric-fusion-welded austenitic chromium-nickel stainless steel pipe for high-temperature and general corrosive service. The specification defines manufacturing classes, welding, heat treatment, examination, dimensions, and testing requirements.
For quotation, specify the ASTM A358 class, grade, outside diameter, wall thickness, length, heat treatment, examination, quantity, and documentation requirements. Compare ASTM A312 pipe for seamless, welded, or heavily cold-worked pipe, and ASTM A778 welded pipe for appropriate lower-pressure applications. See the full industrial pipe range or send your project requirements.
Need to distinguish the class and radiography scope? Read the ASTM A358 Classes 1–5 procurement guide, then specify the exact class in your enquiry.
ANSI/ASME B36.19 DIMENSION
ASTM A358 pipes follow the same dimensional standards as ASME B36.19 for stainless steel pipes, with additional welding requirements.
| Nominal Size | OD | Wall Thickness, SCHEDULE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS | DN | mm | 5S | 10S | 10 | 20 | 30 | 40S | STD | 40 | 80S | XS | 80 | 100 | 120 | 140 | 160 | XXS | |
| 1∕8" | 6 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||||||
| 1∕4" | 8 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||||||
| 3∕8" | 10 | 17.2 | 1.65 | 2.31 | 2.31 | 231 | 3.2 | 3.2 | 3.2 | ||||||||||
| 1∕2" | 15 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||||||
| 3∕4" | 20 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||||||
| 1" | 25 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||||||
| 1-1∕4" | 32 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3,56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||||||
| 1-1∕2" | 40 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||||||
| 2" | 50 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||||||
| 2-1∕2" | 65 | 73 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||||||
| 3" | 80 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||||||
| 3-1∕2" | 90 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||||||
| 4" | 100 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.54 | 11.13 | 13.49 | 17.12 | ||||||
| 5" | 125 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9,53 | 9.53 | 12.7 | 15.88 | 19.05 | ||||||
| 6" | 150 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||||||
| 8" | 200 | 219.1 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 | ||
| 10" | 250 | 273.1 | 3.4 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 | ||
| 12" | 300 | 323.9 | 3.96 | 4.57 | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 | ||
| 14" | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | ||||
| 16" | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 12.7 | 21.44 | 26.19 | 30.95 | 36.53 | 40.49 | ||||
| 18" | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 12.7 | 23.83 | 29.36 | 34.93 | 39,67 | 45.24 | ||||
| 20" | 500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | ||||
| 22" | 550 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |||||
| 24" | 600 | 609.6 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | ||||
| 26" | 650 | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | |||||||||||||
| 28" | 700 | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||||||
| 30" | 750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||||
| 32" | 800 | 812.8 | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | 12.7 | ||||||||||
| 34" | 850 | 863.6 | 7.92 | 12.7 | 15.88 | 17.48 | 9.53 | 17.48 | 12.7 | ||||||||||
| 36" | 900 | 914.4 | 7.92 | 12.7 | 15.88 | 19.05 | 9.53 | 19.05 | 12.7 | ||||||||||
| 38" | 950 | 965.2 | - | 9.53 | 12.7 | ||||||||||||||
| 40" | 1000 | 1016 | - | 9.53 | 12.7 | ||||||||||||||
Manufacturing & Classes
ASTM A358 pipes are classified into 5 classes based on welding and testing methods:
| Class | Welding Method | Testing Requirements | Common Use |
|---|---|---|---|
| Class 1 | Single-welded | 100% radiography | Critical high-pressure systems |
| Class 2 | Double-welded | 100% radiography | Severe corrosive service |
| Class 3 | Double-welded | Spot radiography | Moderate pressure applications |
| Class 4 | As-welded | No radiography | Non-critical services |
| Class 5 | Furnace annealed after welding | Hydrostatic test only | General-purpose piping |
