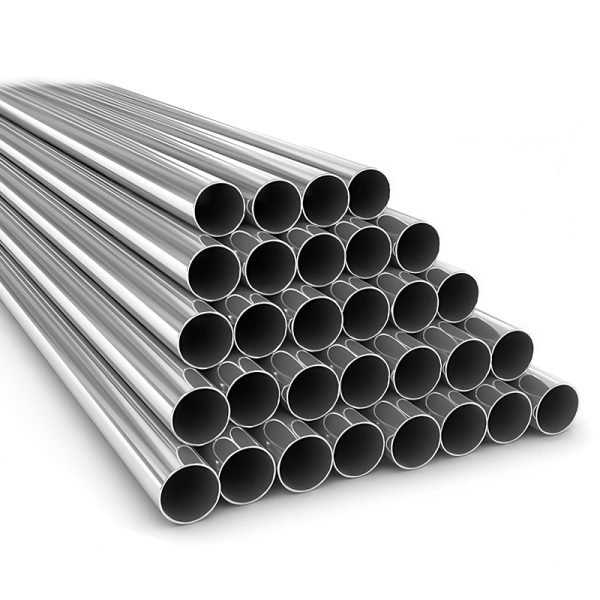

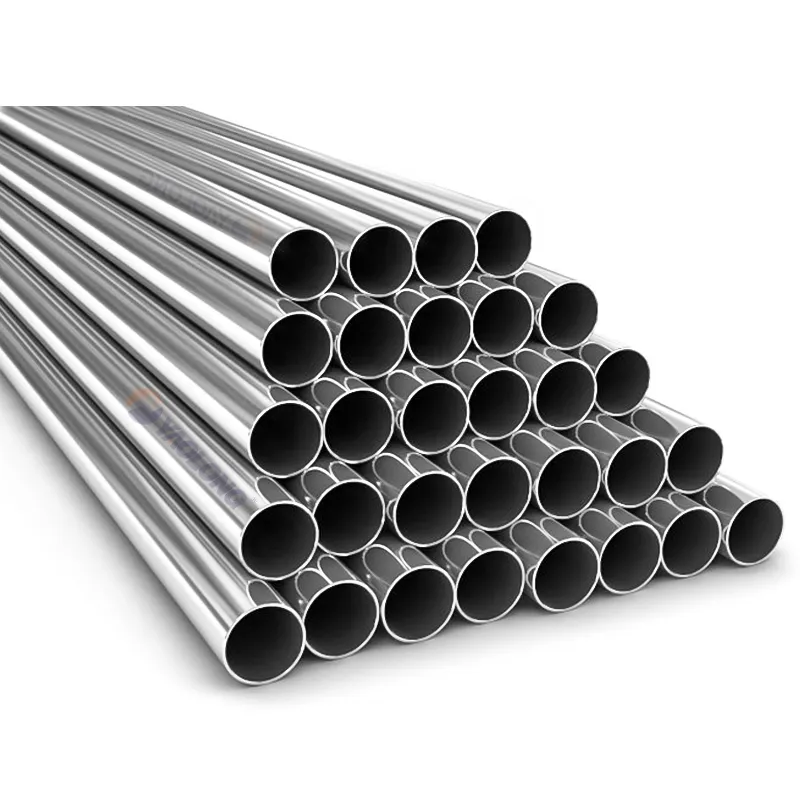

Pharmaceutical Grade Tube - 316L
- International Standard
- Material Grades
- Outer Diameter
- Wall Thickness
- Surface
- Tube Type
- Certificate
- ASME BPE, ASTM A270 S2, 3-A Sanitary Standard
- AISI 316L / 1.4404
- 1/2" to 8"
- 0.065″ - 0.109″
- SF1 SF4
- Welded , Seamless
- ISO 9001:2015 , PED 2014/68/EU , AD 2000-WO
- 12.7mm - 203.2mm
- 1.65mm - 2.77mm
- Pol. Ra < 20 µ-inch (0.51 µm)EP Finished Ra < 15 µ-inch (0.38 µm)
ASME BPE Tubing Dimensions & Tolerances
| Size OD | Wall Thickness | OD Tolerance | Length Tolerance | Wall Thickness Tolerance | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) | |||
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% | |||
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% | |||
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% | |||
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% | |||
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% | |||
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% | |||
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% | |||
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% | |||
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% | |||

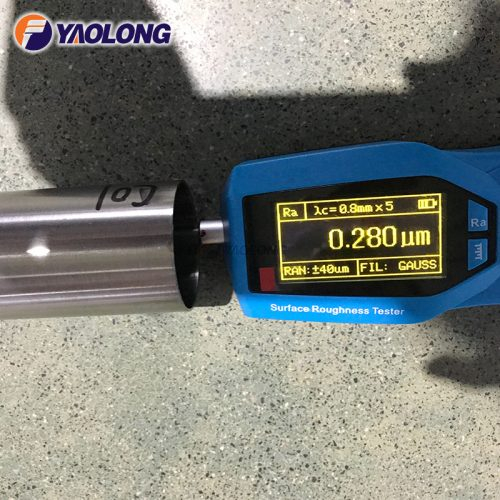

Surface Finish Options
Biopharmaceutical Applications
Upstream Processing: ≤ 0.5 µm Ra, electropolished preferred
Downstream Processing: ≤ 0.38 µm Ra, mandatory electropolish
WFI Systems: ≤ 0.25 µm Ra, full electropolish with 100% inspection
Pharmaceutical Applications
API Manufacturing: ≤ 0.5 µm Ra, depends on product compatibility
Formulation/Filling: ≤ 0.38 µm Ra, electropolished
CIP/SIP Systems: ≤ 0.38 µm Ra, corrosion-resistant finish
|
Finish Code |
Product Contact Surface (Max Ra) |
Product Contact Surface Finish Treatment (ID) |
|
-SF1 (PL) |
20 µ-inch (0.51 µm) |
Mechanical Polish |
|
-SF4 (PM) |
15 µ-inch (0.38 µm) |
Electropolished |
Material Composition (ASME BPE)
| Element | AISI 316L (wt%) |
| Carbon (max) | 0.035 |
| Manganese (max) | 2 |
| Phosphorus (max) | 0.04 |
| Sulfur | 0.005 – 0.017 |
| Silicon (max) | 0.75 |
| Nickel | 10.0-15.0 |
| Chromium | 16.0-18.0 |
| Molybdenum | 2.0-3.0 |

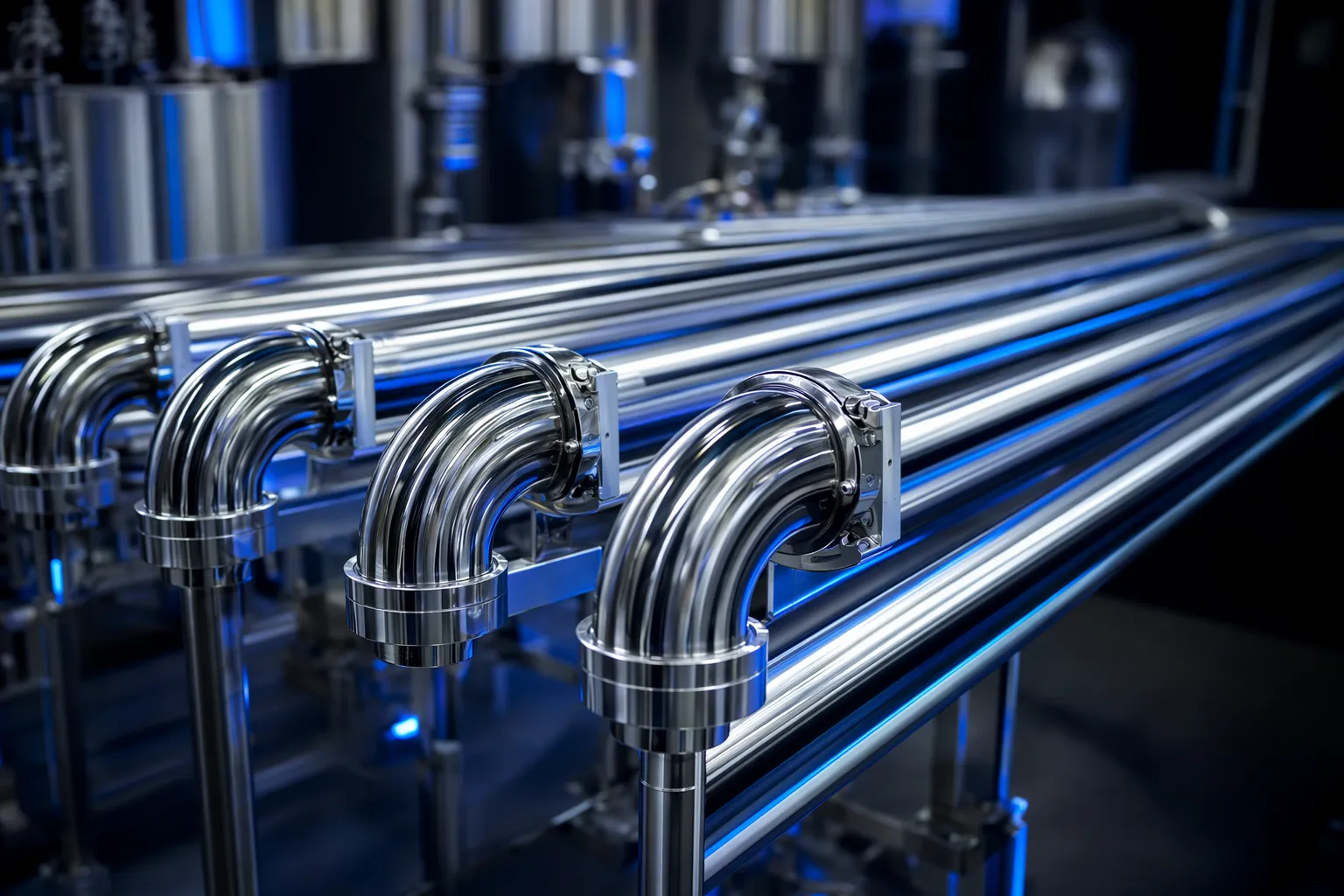

ASME BPE tubes(Bioprocessing Equipment) refers to high-purity stainless steel tubing manufactured, finished, and tested in strict compliance with the ASME BPE Standard. This global standard governs the design, materials, fabrication, and surface finishes of equipment and systems used in sanitary or hygienic applications, primarily within the biopharmaceutical, pharmaceutical, food, beverage, and personal care industries.
Biopharmaceutical: Purified Water (PW), Water-for-Injection (WFI), Clean-in-Place (CIP), Steam-in-Place (SIP) lines, fermentation, cell culture, and purification process piping.
Pharmaceutical: Process fluids, solvent distribution, API (Active Pharmaceutical Ingredient) manufacturing.
Food & Beverage: High-purity ingredient transfer, final product filling.
Cosmetics & Personal Care: High-value product manufacturing.
