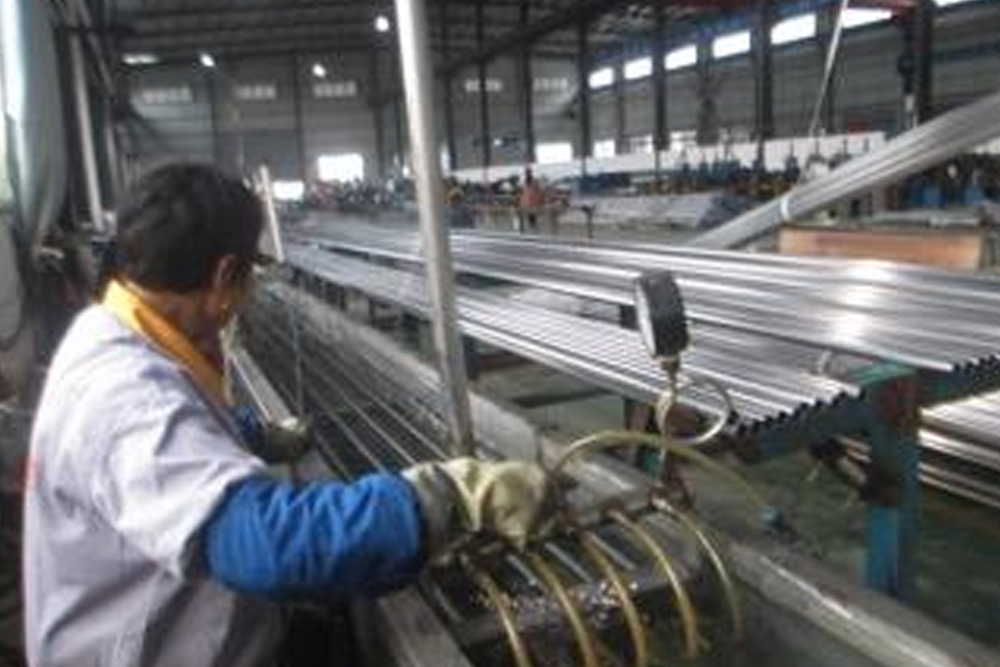

Pneumatic testing is a pressure test method that uses compressed gas (usually air or nitrogen) to verify the strength and leaktightness of piping systems, pressure vessels, and other sealed components. Unlike hydrostatic testing (which uses water), pneumatic testing carries higher risks due to the compressibility of gases, requiring strict safety measures.
When is Pneumatic Testing Used?
Pneumatic testing is preferred when:
Water cannot be used (due to contamination risks, freezing, or system incompatibility).
Systems must stay dry (e.g., oxygen lines, refrigeration systems).
Lowpressure components need testing (where hydrostatic test weight could cause deformation).
Pneumatic Test Procedure
- Preparation & Safety Measures
Isolate the test section with blind flanges or valves.
Use pressure relief valves (set at 10% above test pressure).
Clear the area of personnel (high risk of explosive failure).
- Pressurization
Gradually increase pressure (max 1.1 to 1.5x design pressure, per ASME/API standards).
Never exceed system limits (risk of brittle fracture).
- Soap Solution or Leak Detection
Apply soapy water to joints, welds, and flanges.
Look for bubbles indicating leaks.
Alternative: Use electronic leak detectors (for hazardous gases).
- Hold & Inspect
Maintain pressure for 10–30 minutes (per code requirements).
Monitor for pressure drop (indicates leaks).
- Depressurization & Venting
Slowly release pressure to avoid adiabatic cooling (frost hazards).
Vent gas safely (especially if using nitrogen or toxic gases).
Advantages of Pneumatic Testing
No water contamination (ideal for dryservice systems).
Faster setup than hydrostatic testing (no filling/draining).
Detects smaller leaks (gas escapes more easily than liquid).
Disadvantages & Risks
Extremely hazardous – Stored energy in compressed gas can cause explosions.
Strict safety protocols required (OSHA/ASME compliance mandatory).
Less sensitive to small flaws compared to hydrostatic testing.
Safety Requirements (ASME/OSHA/API Standards)
Test pressure ≤ 1.5x design pressure (ASME B31.3 for piping).
Use inert gases (nitrogen) if testing flammable systems.
Barricade the test area (minimum safe distance enforced).
Pressure relief valve mandatory (to prevent overpressurization).
When is Pneumatic Testing Required?
Oxygen, fuel gas, or chemical pipelines (where water is unacceptable).
Refrigeration & HVAC systems (must remain moisturefree).
Postweld testing in thinwalled vessels (hydrostatic could deform them).
Standards for Pneumatic Testing
ASME BPVC Section VIII (Pressure Vessels)
ASME B31.1 & B31.3 (Piping Systems)
API 570/1104 (Pipeline & Tank Testing)
OSHA 1910.169 (Air Receiver Testing)
